Project Description

• HCC was responsible for the design and construction of 36,000 sf of ISO Class 6 cleanroom at -40°C dew point.
• Also included 4,000 sf of ISO Class 5 at -40°C dew point.

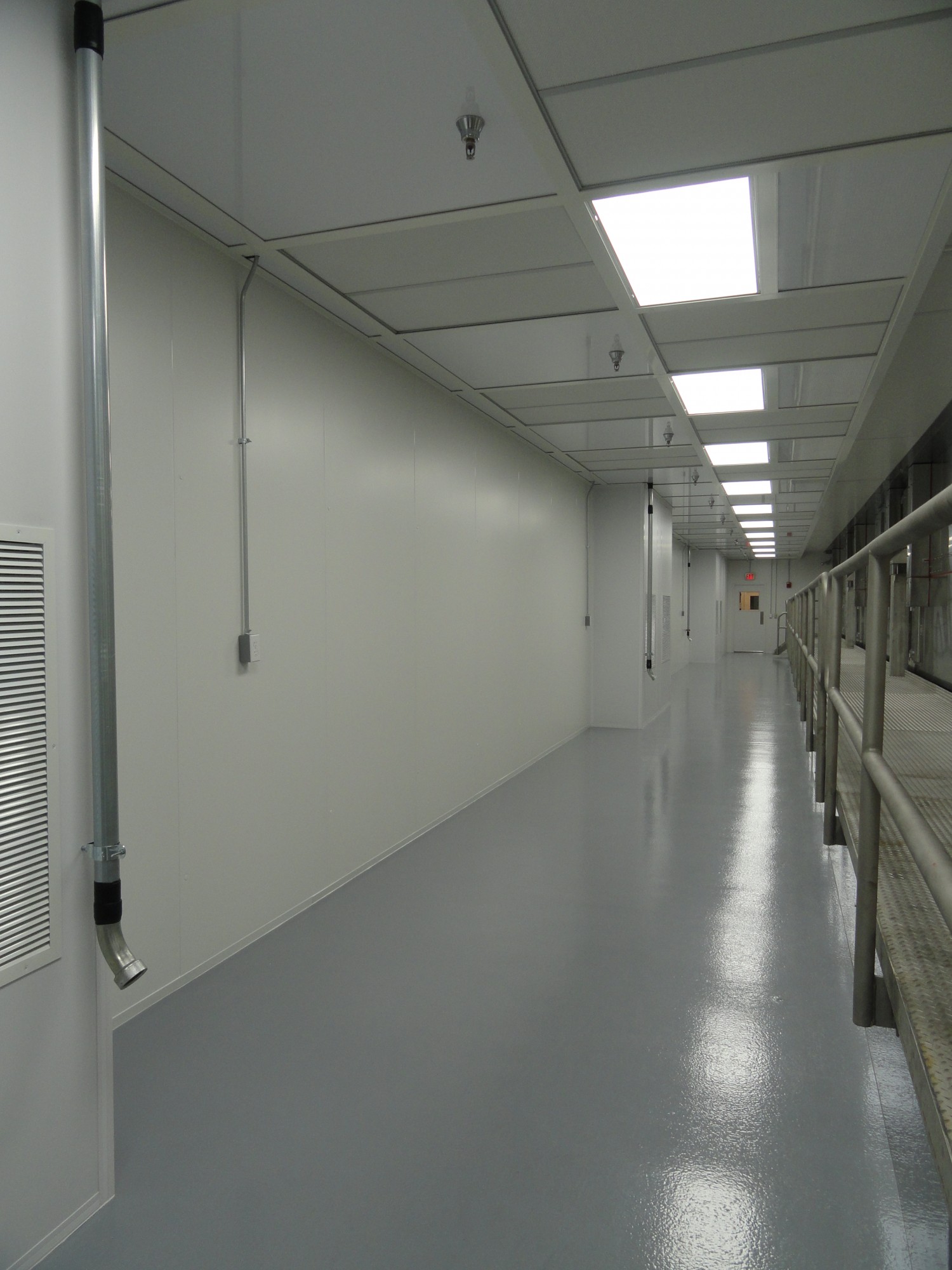

• Rooms were created using insulated tongue and groove camlock panels, as
  well as for the plenum cap, in order to maintain humidity criteria.

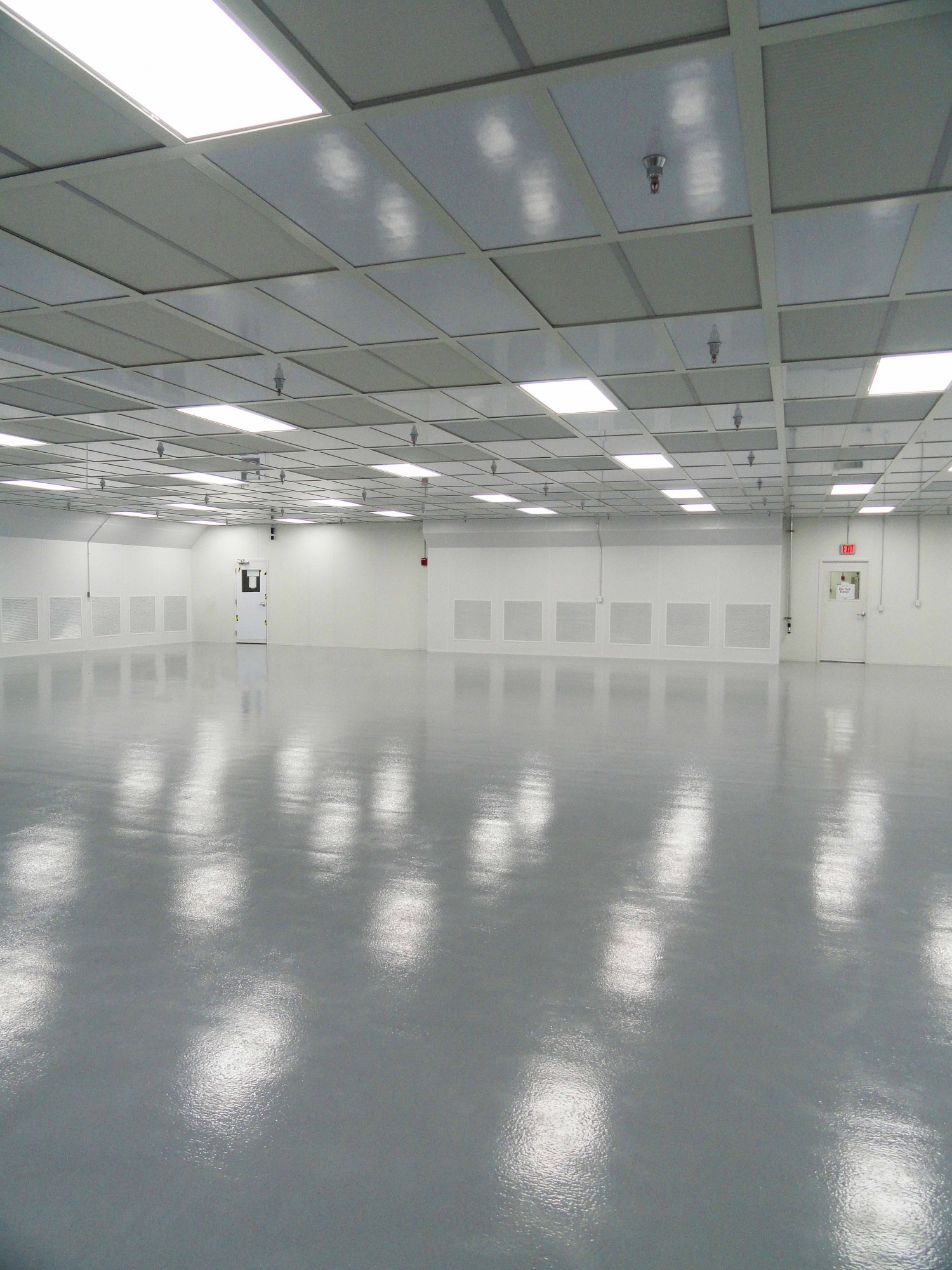

• Installed conductive epoxy floors, Power T cleanroom ceiling grid, 4×4 Fan Filter units, Plascore honeycomb ceiling tiles, and T-5 2×4 light fixtures.
• HCC was responsible for the selection and installation of desiccant dehumidifiers, makeup air units, sensible cooling coils in returns, HVAC piping, duct work, controls and electrical.
• Installed particle counters for continuous monitoring, separate house vac system for each room, as well as a fan commander system for the fan filter units.
• All HVAC equipment sits on a structural steel mezzanine above the cleanroom, which also supports the plenum and ceiling system.
